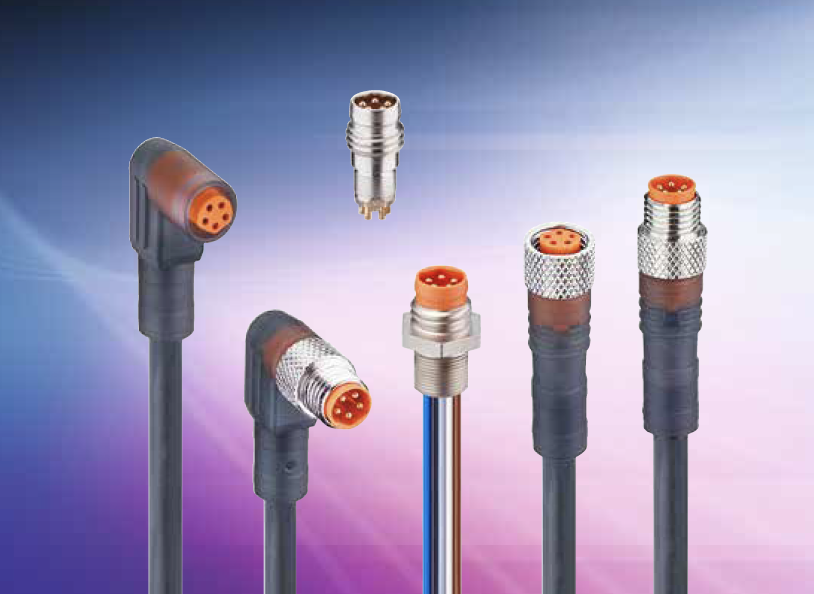

M8 5-Pole Connectors

Designed for the IIoT, these M8 5-pole

B-coded cordsets offer a robust solution

to connectivity and communications requirements. The cordsets deliver greater power in a smaller, lighter size, and have both snap connections to provide fast installation and screw connections to increase protection in harsh environments.

These cordsets make it simple and easy

for you to meet the highest demands for installation speed and flexibility. In just seconds, you can connect sensors, compact actuators, motors, cabinets and more with these cordsets. You’re even able to connect the newest generation of I/O link sensors Class A and B.

The T-splitter accessory enables you to split signals from a single I/O bock to maximize use, a feature that’s especially valuable for connecting interfaces in environments where multiple end devices need to be joined in space restricted areas. Increased current and voltage ratings, and adjustable cable lengths and the industry’s only IEC 61076-2-104  certification for preventing mismating  differentiate these cordsets from any other product available on the market.

The M8 5-pole B-coded cordsets are available in both snap and screw connection, male and female, straight and angled, and molded and receptacle designs, delivering the highest application flexibility on the market, especially when combined with the full Lumberg  Automation LioN-Power system. Designed  to meet the increasing requirements of IIoT, this system will revolutionize connectivity in  industrial environments as the industry’s most robust and easy to handle solution.
