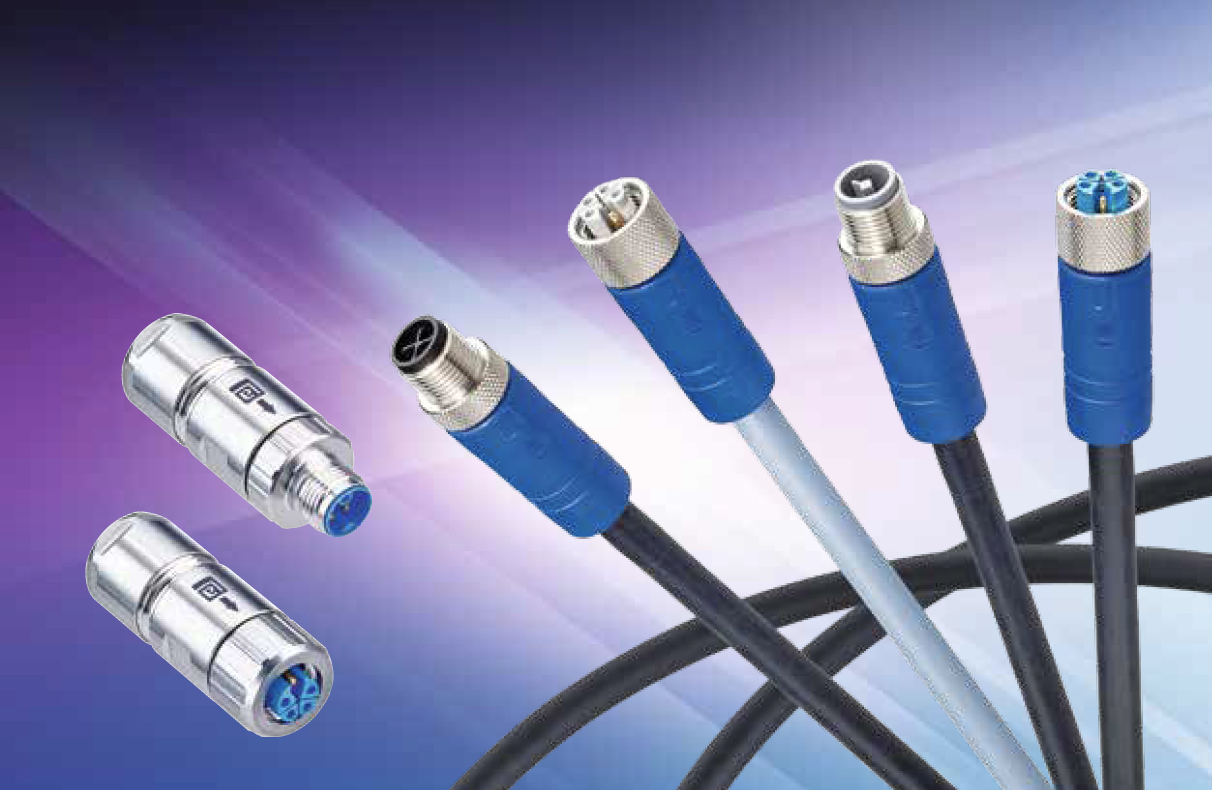

M12 Power Connectors

The M12 Power connector’s compact design and high power transmission make it a cost-effective solution for operations that need  a reliable, flexible connector. The M12 Power  allows for continuous operations in the harshest  environments thanks to new technology  that works excellent in high temperatures.

Product Features

• Secure – outstanding performance in power transmission while fulfilling global standards (UL, VDE). The M12 Power is de-signed according to DIN EN 61076-2-111.

• Operational reliability – transmitting high power even at high ambient temperatures, due to a higher derating grants high up time in production.

• Efficient – small size allows highest flex-ibility in planning your application and saving space while providing cost-effective connectivity. Colored contact bearer makes it easy to identify the codings to speed up installation time.

The M12 Power connector is S-, L-, K- and T-coded and is suitable for connecting drives, control, sensing and actuators in automation control systems.

Benefits

M12 Power Connectors and Cordsets –  space-saving and multi-coded (SLKT) for reli-able high power transfer in harsh, high tem-perature environments.

• Powerful: 16 A up to 630 V

• Efficient: Small size allows highest flexibility, transmitting high power even at high temperatures while being easy to handle enabling the highest level of productivity

• Operational reliability: 3rd party proven quality from a. o. UL

• Designed for use with legacy systems due to the compatibility with 7/8” connectors

• Flexibility: Due to wide product variety in codings (S-, L-, K- and T-coded) and cable variants

Applications

The M12’s K- and S- coding is designed for AC power supplies with 630 V AC/16 A, making it the ideal solution for AC motors and drive for power connections, frequency inverters, motor control switches, auxiliary power  distribution for control systems, and direct wiring of LED and conventional lighting  fixture systems.

The L- and T-coding versions are designed  for DC power supplies with 63 V DC/16 A, which works well for low-voltage supplies,  such as power supplies for I/O modules  fieldbus Ethernet components, network  devices, motors and drives, and direct wiring of LED and conventional lighting fixture  systems. Its small size makes it suitable for applications that require little space, like  automotive, manufacturing and machine building for power transmission.
